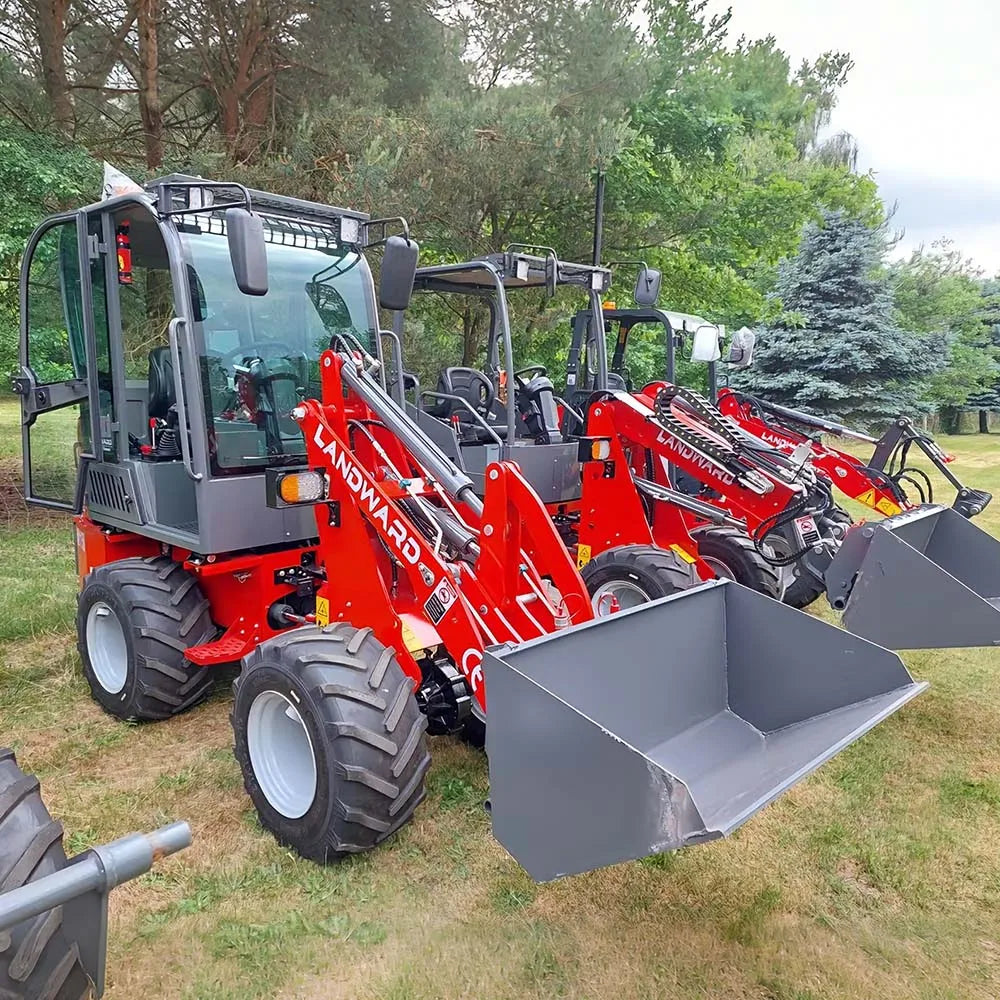

New 4 Wheel Mini Loader Compact Transporter Loader Customized CE Euro 5 Diesel Loader Yard Loader With Bucket Europe Hot Sale
New 4 Wheel Mini Loader Compact Transporter Loader Customized CE Euro 5 Diesel Loader Yard Loader With Bucket Europe Hot Sale
SPECIFICATIONS
Brand Name: LANDWARD
Bucket rated capacity: 0.28m³
Color: Customizable
Dimensions: 300x150x220cm
Engine Model: Kubota 1105 /Perkins
Fuel tank: 30L
High - low speed: Top speed:20 km/h (Electronic Control)
Hydraulic oil tank: 32L
Logo: Customizable
Model Number: W1160 Compact Loader
Origin: Mainland China
Power: 18.2Kw /18.4 Kw
Product Name: Wheel Loader
Traction: 15kN
Transportation: Sea Freight LCL, FCL
Way Of Trade: FOB CIF
Weight: 2570
is_customized: Yes
🔥Landward Store | Professional Loader Manufacturer
Welcome to choose our globally trusted construction machinery partner!
Special promotional offers are currently underway!
Prices are at rock-bottom!
This is a customized product; please communicate with customer service before placing an order.

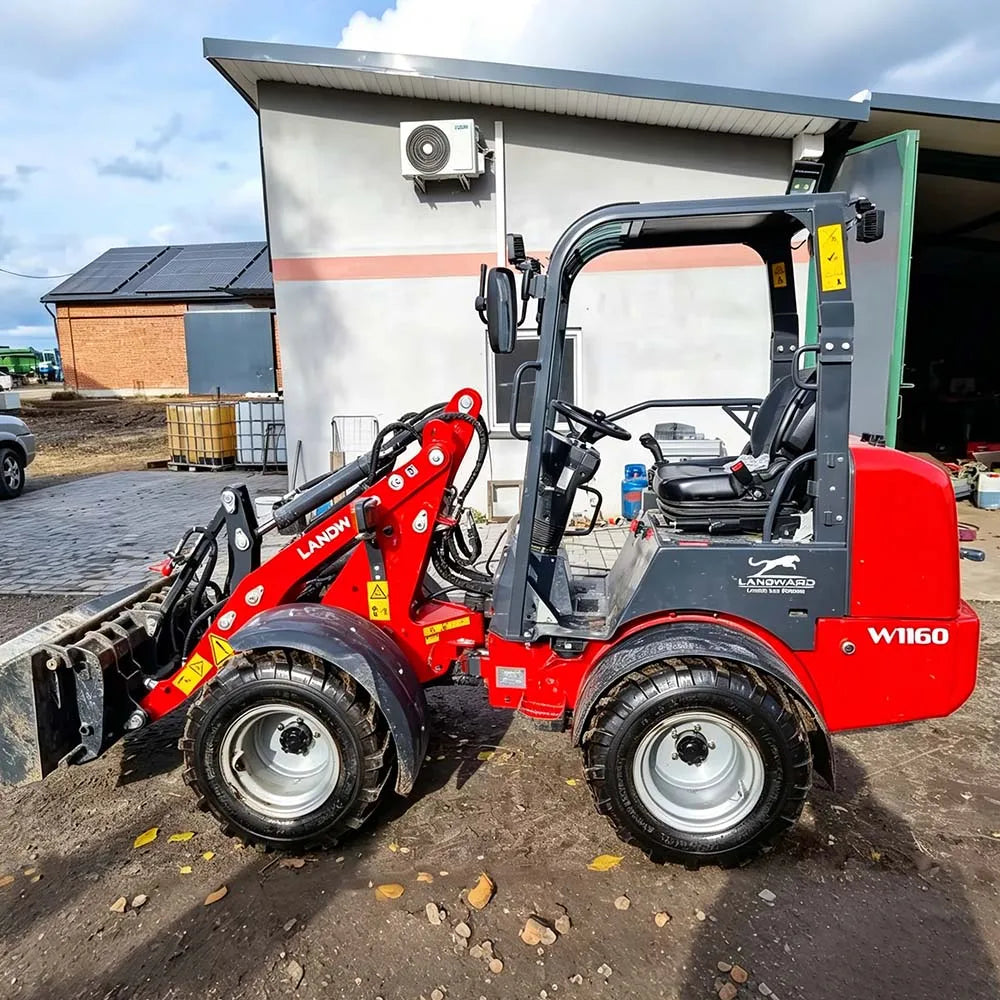

W1160 Compact Loader
Kubota 1105 /Perkins Engine
W1160 Wheel Loader | ||
Standard Configuration |
High Configuration |
|
Engine |
Kubota 1105 /Perkins |
Kubota 1105 /Perkins |
Power |
18.2Kw /18.4 Kw |
18.2Kw/18.4 Kw |
Pump（single） |
Rexroth plunger pump |
Rexroth plunger pump |
Hydraulic Motor |
Double（ZhenJiangdali） |
Single（Rexroth） |
Valve |
Haihong（Domestic） |
Walvoil（Italy） |
High - low speed |
Top speed：15 km/h |
Top speed：20 km/h（Electronic Control） |
Brake |
Inch function |
|
Electric handle |
Forward and Back buttons |
①Forward and Back buttons（Weidmann same style） |
Turn signal |
LED work lights |
LED work lights |
Seats |
Safety shut-off sensor（20s） |
|

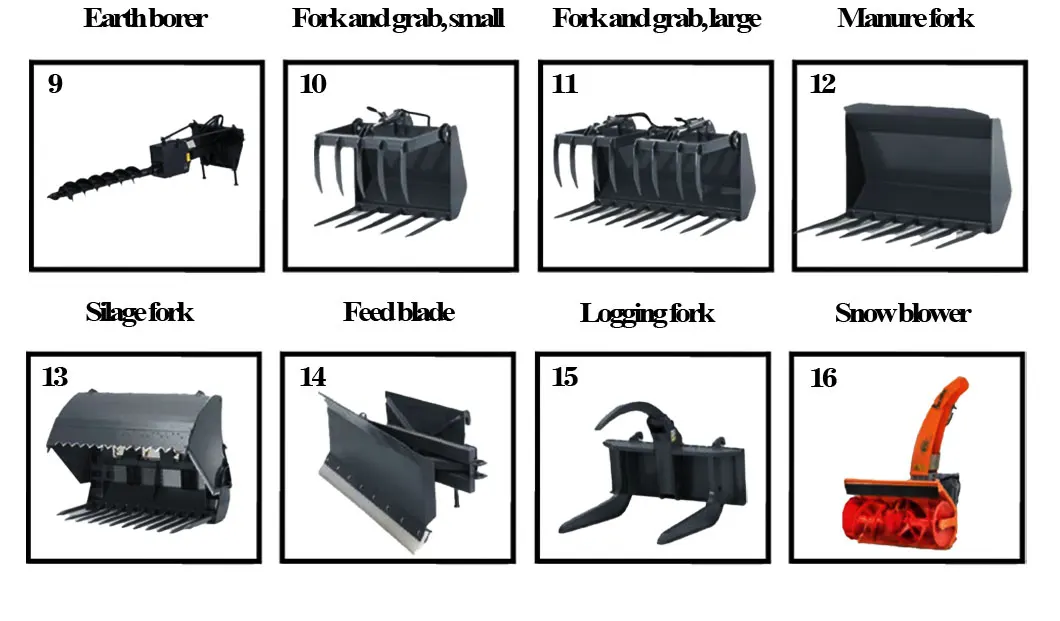

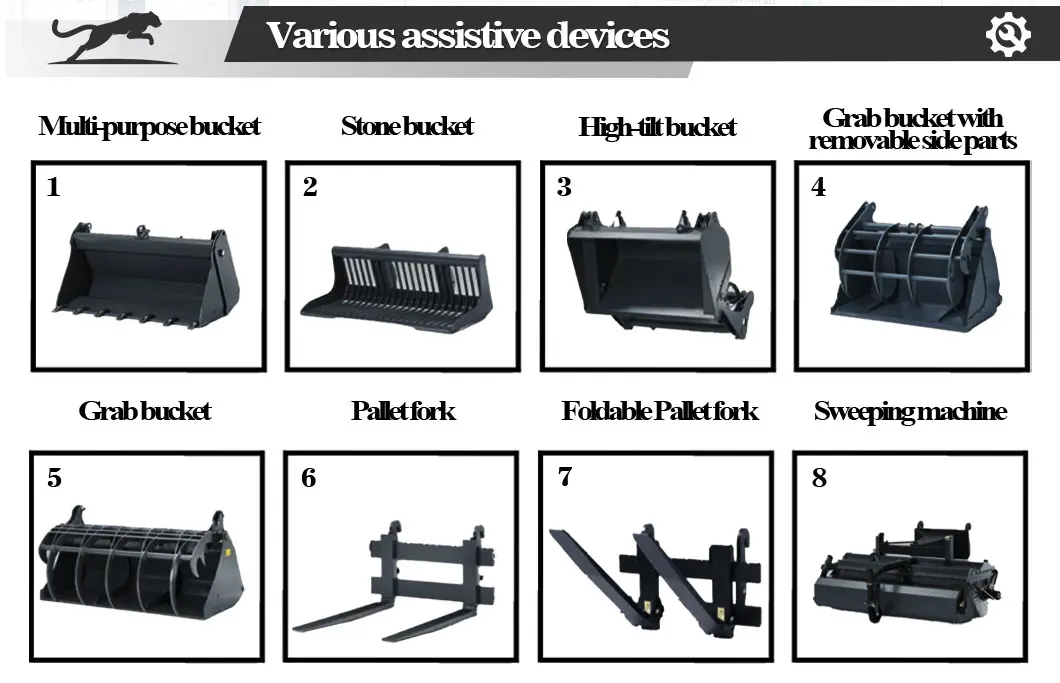

Accessories |
Quick coupler (EU hydraulic) |
Quick coupler (EU hydraulic) |
Tire |
10.0/75-15.3 |
|
Rated lifting capacity |
850-1250kg |
|
Hydraulic oil tank |
32L |
32L |
Fuel tank |
30L |
30L |
Traction |
15 kN |
15kN |
Machine weight |
2570 kg |
2570 kg |
Configuration |
Cab + Heater + Radio（Optional） |
|
Packing size |
3000*1500*2200mm |
|

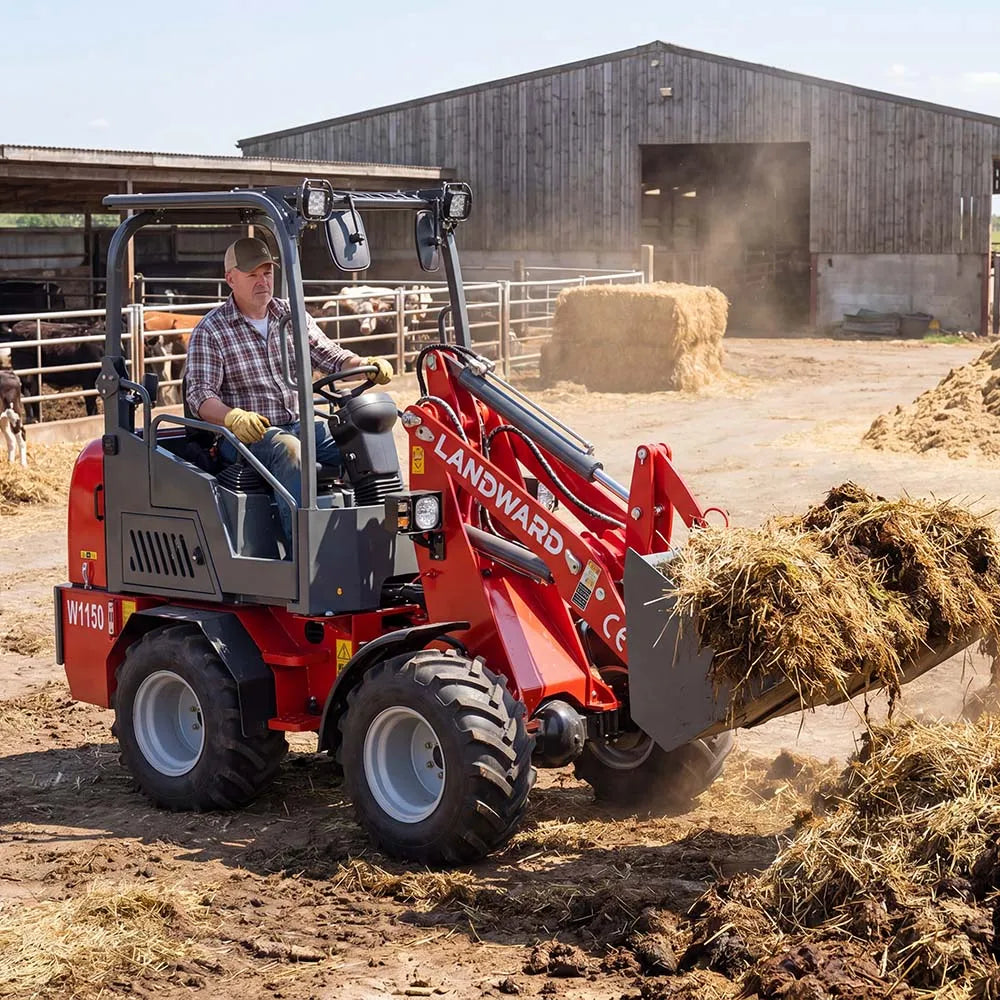

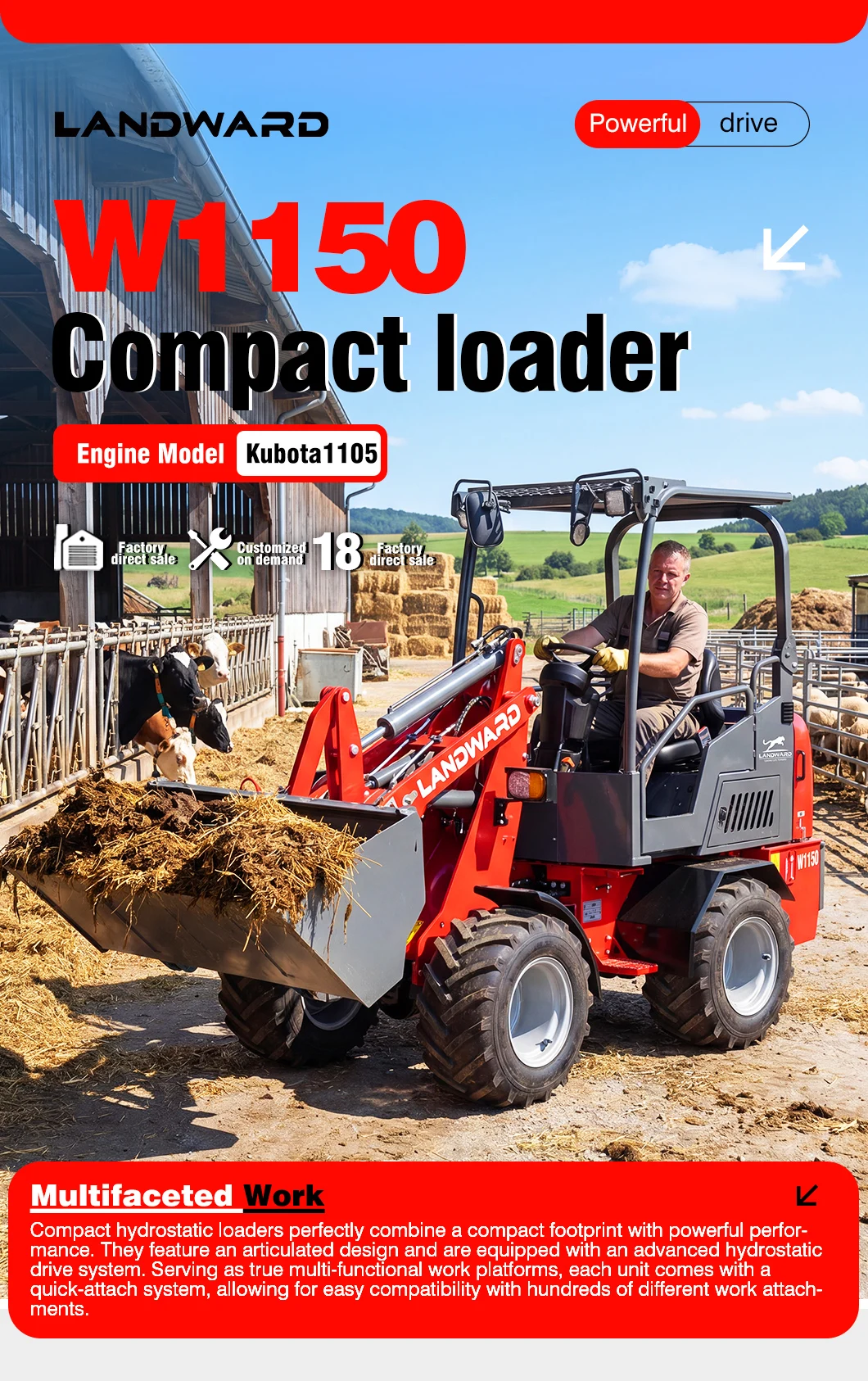

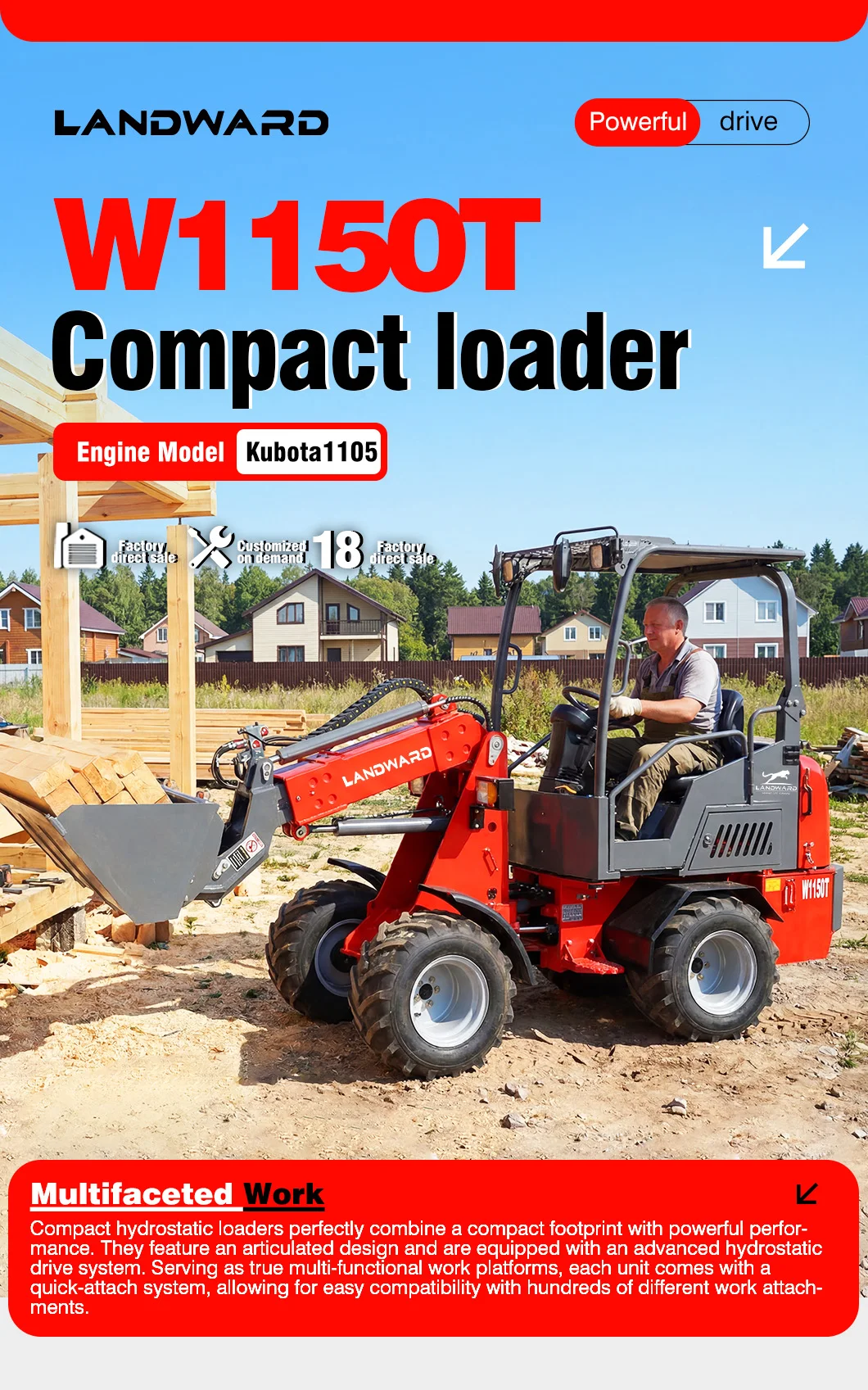

W1150 Compact Loader / W1150T Compact Loader
Kubota 1105 Engine
Description |
Model Number |
W1150 |
W1150T |
|
Performance |
Rated Load |
0.8T |
0.8T |
|
Bucket rated capacity |
0.4m³ |
0.4m³ |
||
Dumping height |
1780mm |
2040mm |
||
（at 45°） |
1780mm |
2640mm |
||
Lifting Height |
3140mm |
3180mm |
||
Dumping Reach |
980mm |
930/1400mm |
||
Max. Lifting weight |
800kg |
800kg |
||
Max. Excavation Force |
1000kn |
1000kn |
||
Max. Grade ability |
30° |
30° |
||
Max. Turning Angel |
30°±1 |
30°±1 |
||
Swing degree of the rear axle |
7° |
7° |
||
Dimensions. &.Weight |
Overall length(Bucket on Ground position) |
3840mm |
3720mm |
|
Bucket width(overall width) |
1160mm |
1160mm |
||
Overall Height |
2330mm |
2330mm |
||
Wheel base |
850mm |
850mm |
||
Min Ground Clearance |
240mm |
240mm |
||
Net Weight |
1850kg |
1850kg |
||
Engine |
Engine Model |
Kubota1105 |
Kubota1105 |
|
Power |
18.2kW |
18.2kW |
||
Speed |
3000r/min |
3000r/min |
||
Tyres |
Type |
Standard26×1200-12 /Optional 31×15.5-15 |
||
working pressure |
0.3MPa |
|||
Qty |
4 |
|||
Steering System |
Type of Steering Hydraulic System |
Full Hydraulic Steering System |
||
System Pressure |
16MPa |
|||
Type of Steering Pump |
External Gear Pump |
|||
Steering Cylinder Bore |
63mm |
|||
Qty |
1pc |
|||
Braking System |
Service Brake |
Drum Brake |
||
Brake Drum |
250mm |
|||
Parking Brake |
Drum Brake |
|||
Distribution Valve |
Model |
DL10 |
||
Type |
Triple valve stem |
|||
Dumping Cylinder-Bore |
Ø80 |
|||
Lifting Cylinder-Bore |
Ø63 |
|||
Oil Capacity |
Hydraulic Oil Tank |
30L |
||
Brake Fluid |
0.8L |
|||
W1260 Compact Loader
Kubota V1505/D1703 Engin
W1260 Compact loader | |
Brand/Model |
Kubota V1505/D1703 |
Type |
4 Cylinders/3 Cylinders |
Emissios Standard |
Euro V/ EPA |
Rated Power (kw/r/min) |
18.4/25 |
Type of Drive |
Hydrostatic |
Drive |
Universal Joint Shaft |
Travel Speed ( km/h) |
0-15 |
Operating Voltage (V) |
12 |
Battery Capacity (Ah) |
60 |
Alternator Rating (Ah) |
40 |
Max.Drive Hydraulics Work Pressure (bar) |
380 |
Max. Drive Hydraulics Discharge Volume (l/min) |
72 |
Max. Work Hydraulics Work Pressure (bar) |
225 |
Max.Work Hydraulics Discharge Volume (l/min) |
32 |
Operating Weight(kg) |
2400-2600 |
Tipping Load with Bucket--Machine Straight (kg) |
1160-1690 |
Tipping Load with Bucket--Machine Pivoted(kg) |
980-1440 |
Tipping Load with Pallet Fork-Machine Straight(kg) |
890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted(kg) |
740-1080 |
Bucket Capacity (m3) |
0.28 |
Operating Brake |
Transmission Drum Brake |
Parking Brake |
Operating and Parking Brake in the Drive Train |
Tyre Size |
31.5*15-15.5 |
Total Length |
4169mm |
Total length without bucket |
3368mm |
Bucket pivot point (to center of axle) |
511.5mm |
Wheel base |
1613mm |
Rear overhang |
1079mm |
Height with operator cabin |
2264mm |
Seat Height |
1112mm |
Total working height |
3591.5mm |
Max.lifting height |
2862mm |
Load-over height |
2455mm |
Dumping height |
1996mm |
Reach(at M) |
655mm |
Digging depth |
173mm |
Total width |
1350mm |
Wheel track |
940mm |
Min.ground clearance |
210mm |
Max.radius |
3100mm |
Inner Radius |
1610mm |
Articulation angle |
43° |
Dumping angle |
50° |
All price is based on FOB Qingdao, China, please consult our sales for more details if you need other delivery solutions.
🛎️Note:This is a customized product, and the price shown is not the final price. Additional costs will apply depending on whether it meets Euro 5 or EPA engine requirements (for European and American countries) and whether other configurations are needed, such as cab/boom swing, etc.We offer multiple delivery methods, including DDP, EXW, FOB, CFR, and CIF. Shipping costs will be calculated separately based on the delivery method.
We can customize colors, configurations, models, appearance, logos, engine types, and power trains.Most importantly, you need to communicate with our customer service to confirm product parameters. Specific prices vary depending on country/region and customs requirements;please contact customer service for consultation. Orders without customer service confirmation will not be shipped.
